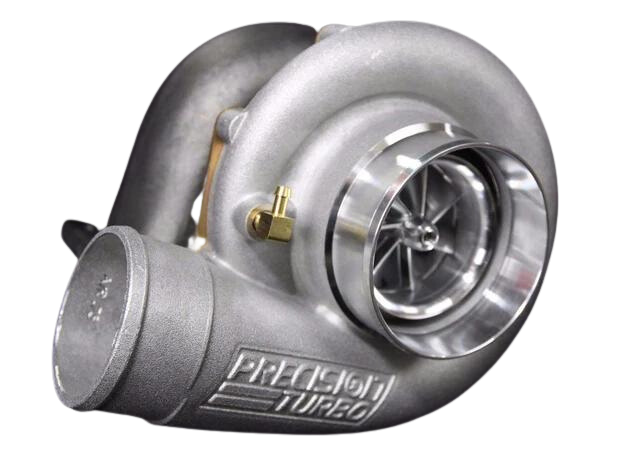

Precision PTE GEN2 PT6870 68mm Turbo

This popular Precision 68mm turbo is rated for up to 1100hp depending on the application. This beast of a turbo is one of the Precision Gen2 Turbos, which are ball bearing. It features an exclusive Competition Engineered Aerodynamics (CEA) compressor wheel machined from a 2618-aluminum forging. The turbo is rated for higher efficiency and faster transient response for maximum power and performance.

COMPRESSOR SPECIFICATIONS

• Compressor Wheel Exducer: 92.46mm
• Compressor Wheel Inducer: 68.02mm
• Compressor Housing Connections:
  • Inlet: 4.0″ Hose Coupler (CCS and CCH)
  • Outlet: 2.5″ Hose Coupler (CCS), 3.0″ Hose Coupler (CCH)

TURBINE SPECIFICATIONS

• Turbine Wheel Exducer: 70.21mm
• Turbine Wheel Inducer: 78.74mm

The Precision Gen 2 PT6870 CEA turbo is available in (14) different turbine housing configurations:

• GEN2 PT6870: T4 Inlet, V-Band Discharge 0.68 A/R (21607215209)
• GEN2 PT6870: T4 Inlet, V-Band Discharge 0.81 A/R (21607215219)
• GEN2 PT6870: T4 Inlet, V-Band Discharge 0.96 A/R (21607215229)
• GEN2 PT6870: T4 Divided Inlet, V-Band Discharge 0.84 A/R (21607215239)
• GEN2 PT6870: T4 Divided Inlet, V-Band Discharge 1.00 A/R (21607215249)
• GEN2 PT6870: T4 Divided Inlet, V-Band Discharge 1.15 A/R (21607215259)
• GEN2 PT6870: T4 Divided Inlet, V-Band Discharge 1.32 A/R (21607215269)
• GEN2 PT6870: T4 Stainless V-Band In/Out 0.81 A/R (21607215289)
• GEN2 PT6870: T4 Stainless V-Band In/Out 0.96 A/R (21607215299)
• GEN2 PT6870: Buick 3-Bolt Inlet 0.85 A/R HD ACT (21607215578)
• GEN2 PT6870: Buick 3-Bolt Inlet 0.85 A/R (21607215579)
• GEN2 PT6870: T3 Stainless V-Band In/Out 1.05 A/R (21607215799)
• GEN2 PT6870: T4 Divided Inlet, V-Band Discharge 1.52 A/R (21607215899)
• GEN2 PT6870: T4 Divided Inlet, V-Band Discharge 1.75 A/R (21607215909)
• GEN2 PT6870: No Turbine Housing (21607215999)

Looking to ensure you get the perfect part for your unique application the first time? Full-Race is here to help.

Email us at gofaster@full-race.com or call us at (602) 437-2101 to find out how we can help you achieve your goals.
