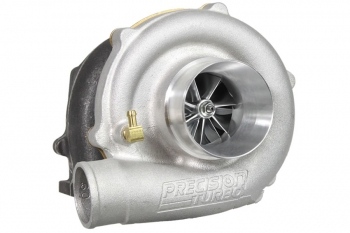

76mm Precision PTE Cast 7675 Entry Level Turbo

Description

76mm Precision PTE Cast 7675 Entry Level Turbo

This budget friendly 76mm turbo is Precision’s cost effective solution supporting up to 900hp.  Utilizing the legendary cast 76mm compressor wheel from precision, the 7675 has many of the benefits and characteristics of their larger CEA billet wheels at a fraction of the price.

Compressor Specifications

• Compressor Wheel Exducer: 88.95mm
• Compressor Wheel Inducer: 76mm
• Compressor Housing Connections:
  • Inlet: 4.0″ Hose Coupler (CCH)
  • Outlet: 3.0″ Hose Coupler (CCH)

Turbine Specifications

• Turbine Wheel Exducer: 75.08mm
• Turbine Wheel Inducer: 82mm
• Housing Size and A/R ratio: PT7675 is available in two (2) different turbine housing configurations:
  • T4 Inlet, V-Band Outlet 0.81 A/R
  • T4 Inlet, V-Band Outlet 0.96 A/R
