Precision GEN2 PT118 CEA Turbo

Ready to ship

SKU: 33727

For off-road and race use only

$4,821

Ready to ship

Proven power gains.

Test bench. Real trucks. Real results.

Tuned by diesel addicts.

We drive what we sell.

Installs like OEM. Hits like aftermarket.

100% fit. Maximum output.

Fast shipping.

Ready to ship from US warehouses.

Description

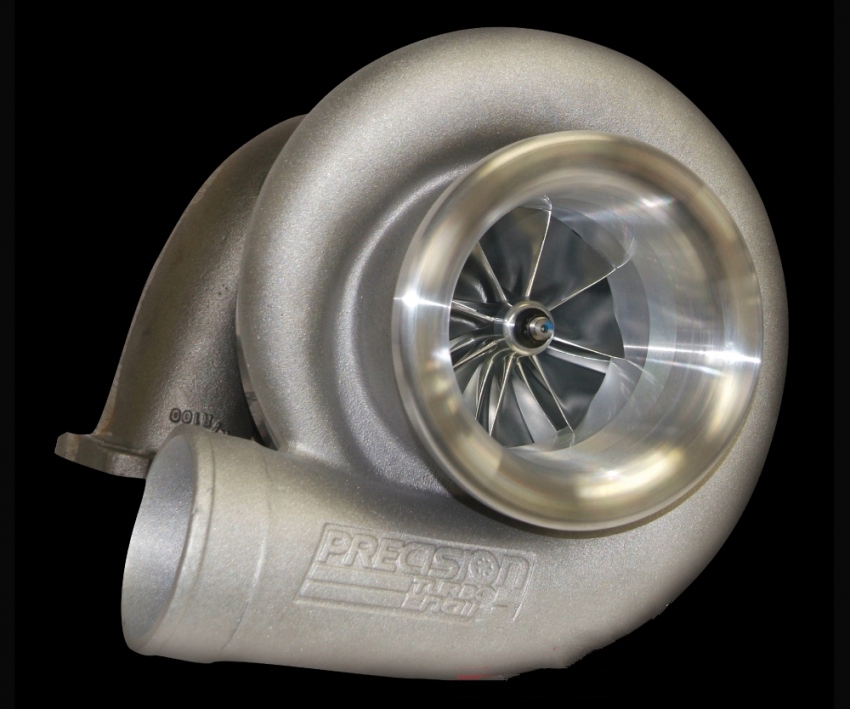

Precision GEN2 PT118 CEA Turbo

This popular 118mm turbo is an absolute monster. Rated for 2800hp per turbo, exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel is machined from a 2618-aluminum forging. Higher efficiency and faster transient response for maximum power and performance. Ball Bearing Only.

Compressor Specifications

Compressor Wheel Exducer: 149.71mm
Compressor Wheel Inducer: 117.98mm
Compressor Housing Connections:
- Inlet: 7″ Hose Coupler (CCP)
- Outlet: 4″ Hose Coupler (CCP)

Turbine Specifications

Turbine Wheel Exducer: 111.76mm
Turbine Wheel Inducer: 129.54mm
Housing Size and A/R ratio: PT118 CEA is available in three (3) different turbine housing configurations:
- T5 Open Inlet, V-Band Outlet 1.00 A/R
- T5 Open Inlet, V-Band Outlet 1.32 A/R
- T5 Open Inlet, V-Band Outlet 1.50 A/R
