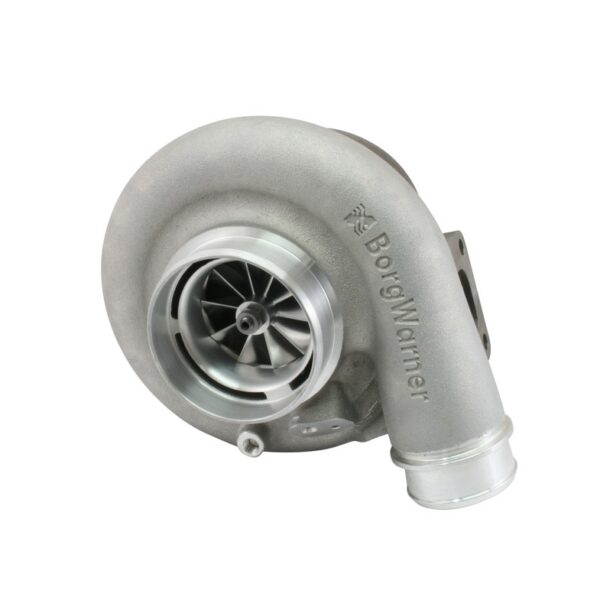

BorgWarner Airwerks S362SX-E (8380)

Description

BorgWarner’s S362 SX-E aka 61.44mm S300SX-E 8380 Provides Strong Performance with Low Backpressure and Legendary Reliability

This is the low backpressure 80mm turbine version of the legendary BorgWarner S362SX-E.  The 61.44mm Inducer SX-E turbo is the updated performance replacement for S360, S362, and 63mm FMW turbos.   This 80mm turbine variant utilizes BorgWarner’s latest generation FMW billet compressor wheels and uprated journal bearings with 360-degree thrust assemblies all in the classic Airwerks S300 frame. Packaged in a purpose-built SX-E compressor housing, SX-E turbos utilize a ported shroud anti-surge inlet and speed sensor port.  Paired with a traditional Airwerks 80mm Inconel turbine and flexible housing options, the CHRA is oil-cooled journal bearing only.

BorgWarner SX-E Turbo Features

• Available as a complete turbo -or- supercore (no turbine housing) to retrofit existing Airwerks installations.
• Forged milled compressor wheels with Optimized compressor blade aerodynamics
• all-new severe-duty 360-degree thrust bearing
• Compressor cover integrated speed sensor port and pre-machined boost port
• Flexible compressor cover outlet options: coupler or v-band
• Interchangeable with existing Airwerks turbine housings for plug-and-play upgrades
• Optional Turbo Speed Sensor Kit
• Optional Turbo Speed Gauge

S300SX-E Compressor Map

Compressor Specifications

• Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
• Compressor Wheel OD (exducer): 83.47mm
• Compressor Wheel Inducer: 61.44mm
• Max Flow Rate: 78 lb/min
• Max Recommended Turbo Shaft Speed: 121k RPM (560 m/s)
• Compressor Housing Connections:
  • Inlet: 4.0″ Hose Coupler
  • Outlet: 2.5″ Hose Coupler

Turbine Specifications

• Turbine Type: Inconel S300SX Turbine Wheel
• Turbine Wheel OD: 80mm
• Housing Material: D5S
• Housing Size and A/R ratio: S300SXE 8380 is available in three (3) different turbine housing configurations:
  • 0.88 A/R T4 Single Scroll
  • 0.91 A/R T4 Twin Scroll
  • 1.00 A/R T4 Twin Scroll
• Turbine outlet: 3″ Marmon or Optional 3″ V-Band Upgrade



SX300SX-E Dimensions
