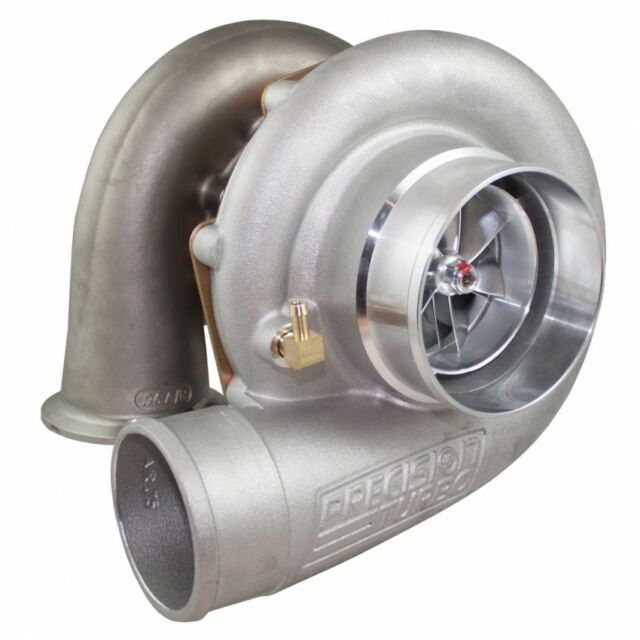

72mm Precision PT7275 Gen2 CEA Billet Turbo
Precision’s Gen2 7275 is the next generation of their 72mm turbo. Rated for over 1000+hp depending on the application‚ the Exclusive CEA‚® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging is one of the most aggressive in the lineup. Atached to the 82mm turbine wheel (75mm exducer) this is a proven turbo for competitive drag racing applications
Compressor Specifications
- Compressor Wheel Exducer: 93.98mm
- Compressor Wheel Inducer: 72mm
- Compressor Housing Connections:
- CCH Inlet: 4″ Hose Coupler (CCE)
- Outlet: 3.0″ Hose Coupler (CCE)
Turbine Specifications
- Turbine Wheel Exducer: 75.08mm
- Turbine Wheel Inducer: 82mm
- Housing Size and A/R ratio: PT7175 CEA is available in two (2) different turbine housing configurations:
- T4 Inlet, V-Band Outlet 0.81 A/R
- T4 Inlet, V-Band Outlet 0.96 A/R
