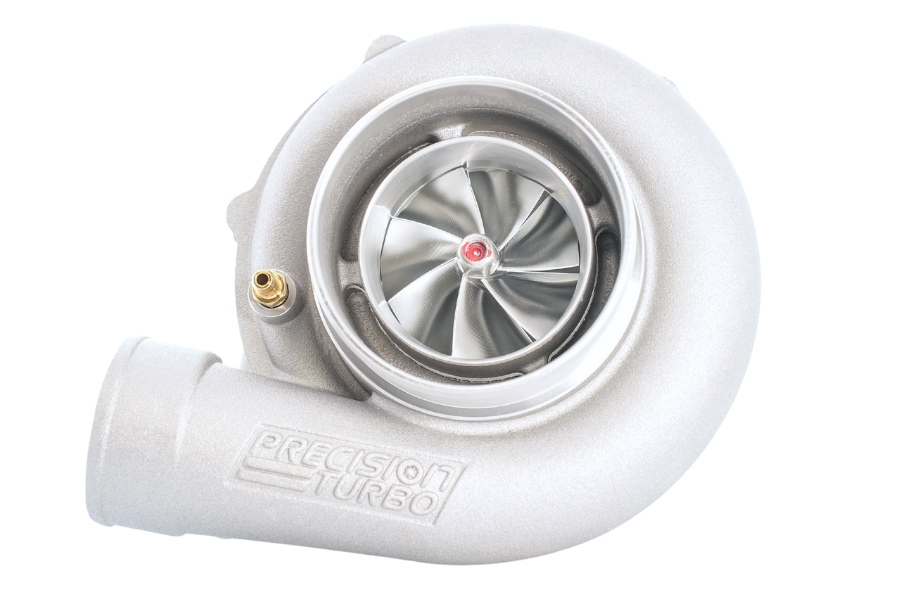

Precision Turbo 62mm Next Gen 6266

Price range: $1,790 through $2,635

Precision Turbo Next Gen 6266 is rated at 925HP and features a redesigned compressor cover and wheel for 10% more flow than the Gen 2 version.

Add to Wishlist
Add to Wishlist
  • Fast shipping from US warehouses
  • Genuine parts with full manufacturer warranty
  • Fitment questions? 833 700-4135
SKU: PT6266-NEXTGEN Category:

Description

NEXT GEN 6266 TURBOCHARGER RATED FOR 925HP

Brand New Next Gen 7×7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airfow Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers.

High flow / highly efficient 66mm turbine wheel.

Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability.

Available in an all-new SCP compressor cover w/ 4” inlet and 2-1/2”outlet for maximum air flow.

No price increase over Gen 2!

SPECIFICATIONS

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 86mm/ 88.1mm ET
  • Turbine Wheel Inducer: 74mm
  • Turbine Wheel Exducer: 66mm

Next Gen 6266 Part NumbersNext Gen 6266 Part Numbers

UNLEASH YOUR PERFORMANCE POTENTIAL

Looking to ensure you get the perfect part for your unique application the first time? Full-Race is here to help.

Email us at gofaster@full-race.com or call us at (602) 437-2101 to find out how we can help you achieve your goals.

Make sure to tag and follow us on Instagram & Facebook to get featured! @fullracemotorsports

Full-Race LogoFull-Race Logo

Additional information

SKU

PT6266-NEXTGEN
WEIGHT

30.000000
BRAND

Precision
Turbocharger Selection

NEXTGEN PT6266 SCP W/ T3 INLET/4-BOLT OUTLET .63 A/R, NEXTGEN PT6266 SCP W/ T3 INLET/V-BAND OUTLET .63 A/R, NEXTGEN PT6266 SCP W/ T3 INLET/4-BOLT OUTLET .82 A/R, NEXTGEN PT6266 SCP W/ T3 INLET/V-BAND OUTLET .82 A/R, NEXTGEN PT6266 SCP W/ T3 V-BAND IN/OUT .82 A/R, NEXTGEN PT6266 SCP W/ T3 STAINLESS V-BAND IN/OUT .82 A/R, NEXTGEN PT6266 SCP W/ T3 INLET/5-BOLT OUTLET .63 A/R, NEXTGEN PT6266 SCP W/ T3 INLET/5-BOLT OUTLET W/HOLE .63 A/R, NEXTGEN PT6266 SCP W/ T4 INLET/V-BAND OUTLET .58 A/R, NEXTGEN PT6266 SCP W/ T4 INLET/V-BAND OUTLET .68 A/R, NEXTGEN PT6266 SCP W/ T4 INLET/V-BAND OUTLET .81 A/R, NEXTGEN PT6266 SCP W/ T4 INLET/V-BAND OUTLET .96 A/R, NEXTGEN PT6266 SCP W/ T4 DIVIDED INLET/V-BAND OUTLET .84 A/R, NEXTGEN PT6266 SCP W/ T4 DIVIDED INLET/V-BAND OUTLET 1.00A/R, NEXTGEN PT6266 SCP W/ T4 DIVIDED INLET/V-BAND OUTLET 1.15A/R, NEXTGEN PT6266 SCP W/ T4 DIVIDED INLET/V-BAND OUTLET 1.32A/R, NEXTGEN PT6266 SCP W/BUICK 3-BOLT INLET .63 A/R STD ACT, NEXTGEN PT6266 SCP W/BUICK 3-BOLT INLET .63 A/R HD ACT, NEXTGEN PT6266 SCP W/BUICK 3-BOLT INLET .63 A/R, NEXTGEN PT6266 SCP W/BUICK 3-BOLT INLET .85 A/R STD ACT, NEXTGEN PT6266 SCP W/BUICK 3-BOLT INLET .85 A/R HD ACT, NEXTGEN PT6266 SCP W/ BUICK 3-BOLT INLET .85 A/R, NEXTGEN PT6266 SCP W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R, NEXTGEN PT6266 SCP W/ T4 DIVIDED INLET/V-BAND OUTLET .70 A/R, NEXTGEN PT6266 SCP W/ NO TURBINE HOUSING(SUPERCORE ONLY)
