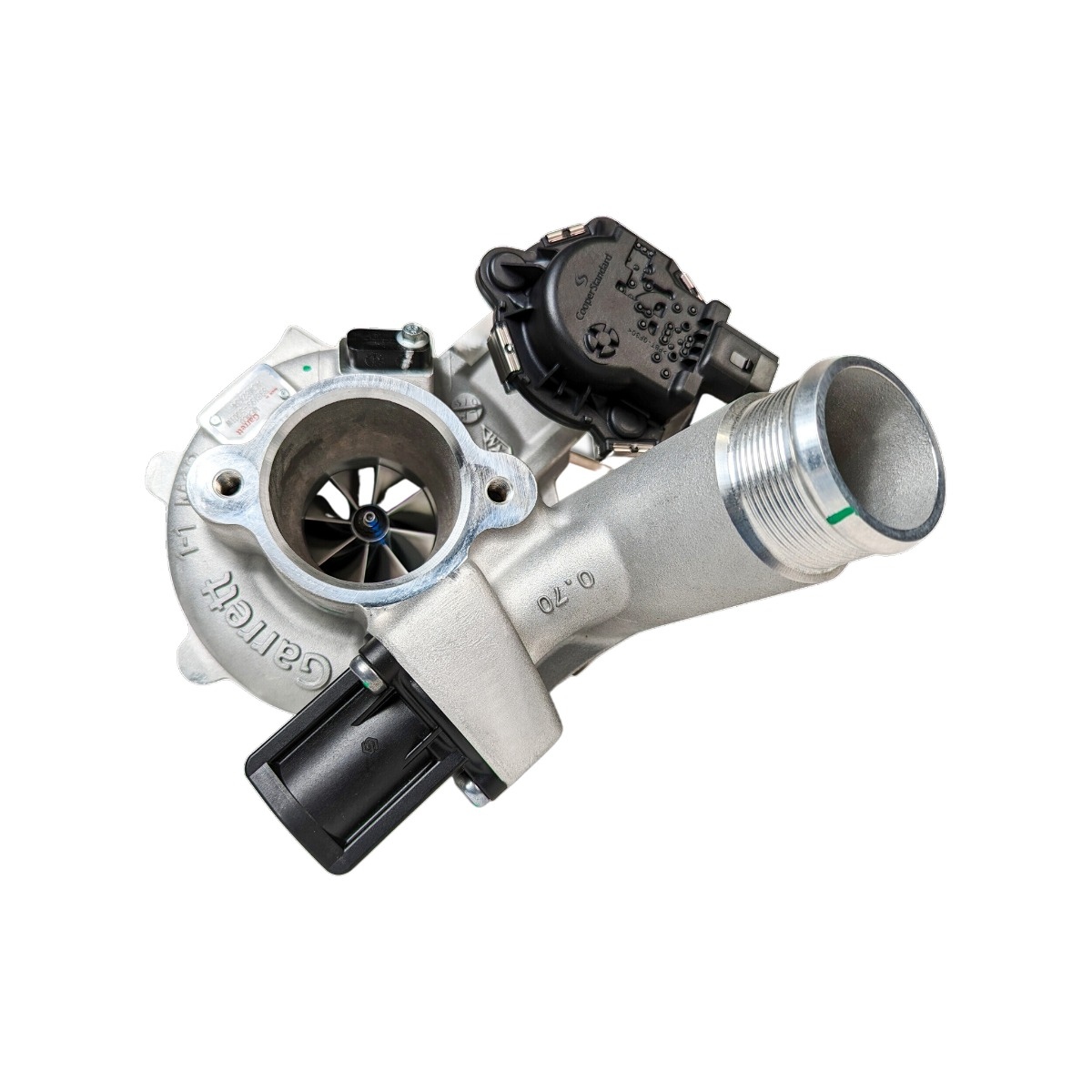

Garrett PowerMax 2014 – 2018 Volkswagen / Audi 2.0L TSI MK7 — STAGE 1 —

Ready to ship
SKU: 33549
For off-road and race use only

$1,772

Garrett PowerMax™ turbocharger upgrades for the Volkswagen and Audi MK7 2.0L TSI engine platform are engineered to increase engine performance while maintaining OEM installation specifications. Designed to be a direct bolt-on upgrade, the Stage 1 PowerMax turbocharger is rated to 485HP.

Ready to ship
Add to Wishlist
Add to Wishlist
Proven power gains.

Test bench. Real trucks. Real results.

Tuned by diesel addicts.

We drive what we sell.

Installs like OEM. Hits like aftermarket.

100% fit. Maximum output.

Fast shipping.

Ready to ship from US warehouses.

Description

GARRETT POWERMAX 2014 – 2018 VOLKSWAGEN / AUDI 2.0L TSI MK7 STAGE 1

Garrett Powermax VW Stage 2 Turbo UpgradeGarrett Powermax VW Stage 2 Turbo Upgrade


485 HP IN A DIRECT BOLT-ON TURBO

Garrett PowerMax™ turbocharger upgrades for the Volkswagen and Audi MK7 2.0L TSI engine platform are engineered to increase engine performance while maintaining OEM installation specifications. Designed to be a direct bolt-on upgrade, the Stage 1 PowerMax turbocharger is rated to 485HP. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings are rated for up to 1050° C. These turbochargers are fully assembled with a calibrated electronic actuator and ancillary components for direct OEM fitment.

Garrett Powermax Stage 1 TurbochargerGarrett Powermax Stage 1 Turbocharger

47MM GTX GEN II COMPRESSOR

Designed to support up to 485 HP, the Garrett PowerMax Stage 1 Bolt-on Volkswagen/Audi upgraded turbocharger is a great upgrade for anyone looking to add more power to their 2014-2018 Volkswagen or Audi 2.0L TSI MK7 engine. The PowerMax Turbo adds 17% more airflow compared to the OEM IS38 turbo. The center section features the latest journal bearing technology with a 360 degree reinforced thrust bearing.

Garrett PowerMax Stage 1 VW Turbo upgrade compressor mapGarrett PowerMax Stage 1 VW Turbo upgrade compressor map

EASY INSTALLATION

Installation couldn’t get any easier with these PowerMax Bolt-On turbocharger. Designed to fit in the OEM location and bolt to the OEM manifold and inlet, this upgrade is quick and easy.

Garrett PowerMax Stage 1 Turbo UpgradeGarrett PowerMax Stage 1 Turbo Upgrade

Available GBC35-700 Turbine HousingsAvailable GBC35-700 Turbine Housings

Garrett Powermax VW Turbo Upgrades HP Dyno SheetGarrett Powermax VW Turbo Upgrades HP Dyno Sheet
Garrett Powermax VW Turbo Upgrades Torque Dyno SheetGarrett Powermax VW Turbo Upgrades Torque Dyno Sheet

GARRETT POWERMAX STAGE 1 VW/AUDI FEATURES

  • Direct-Fit Stage 1 Upgrade
  • 485HP | 362kW (flywheel) power capability (on-vehicle results)
  • 47mm compressor inducer, 60mm compressor exducer
  • 50mm turbine inducer, 45mm turbine exducer
  • GT2260S turbocharger
  • Complete assembly with calibrated electric actuator and ancillary components for OE fitment
  • +17% flow compared to IS38 turbo (stock Golf R)
  • GTX Gen II compressor wheel aero
  • Modern gasoline turbine wheel aerodynamics constructed of Mar-M alloy rated for up to 1050C
  • Stainless steel turbine housing rated for up to 1050C
  • Fully machined speed sensor port
  • Latest generation of journal bearing rotor group
  • 360-degree thrust bearing – reinforced for application

      Stage 1 Part number: 898199-5001W Supports up to 485 HP (362kW)*

APPLICATIONS


GARRETT POWERMAX 2014 – 2018 VOLKSWAGEN STAGE 1 DYNO VIDEO


UNLEASH YOUR PERFORMANCE POTENTIAL

Looking to ensure you get the perfect turbo for your unique application the first time? Full-Race is here to help. Our customized turbo matching and system integration services use accurate operating parameter plotting to eliminate guesswork and trial and error. As turbocharging continues to grow globally, our unwavering commitment to high standards ensures unrivaled quality, reliability, and performance. Email us at gofaster@full-race.com or call us at (602) 437-2101 to find out how we can help you achieve your goals.
