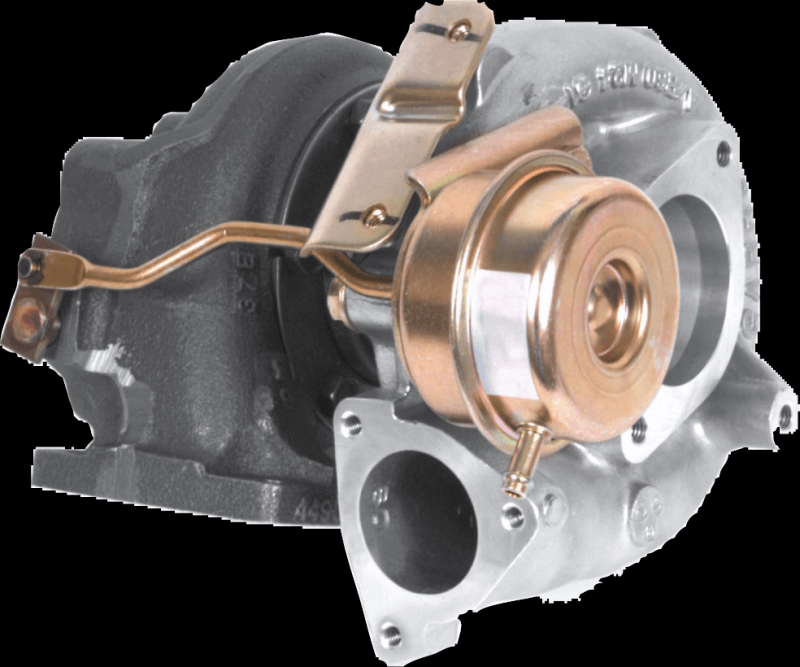

Garrett GT2560R Turbo

• Stainless Steel Ball bearing
• Oil & Water-cooled bearing system
• T25 turbine inlet flange with threaded bolt holes instead of traditional through holes
• Turbine housing has a unique “compact” 5-bolt outlet that is not interchangeable with traditional T25 5-bolt outlets
• Turbine housing is cast from high-nickel “Ni-Resist” material for extreme applications
• Turbine wheel is cast from “Inconel” material for extreme applications
• Provides better boost response than the 743347-1 & -2 turbochargers
• Direct replacement upgrade turbocharger for GT2556R (702987-7) on Nissan RB26DETT used in Skyline R34 GT-R
• Great size for applications w/ packaging constraints
• Ideal for smaller displacement engines making up to 460 hp

Compressor Specifications:

• 60 trim compressor wheel
• 0.60 AR compressor housing

Turbine Specifications:

• 62 trim turbine wheel
• 0.64 AR turbine housing
