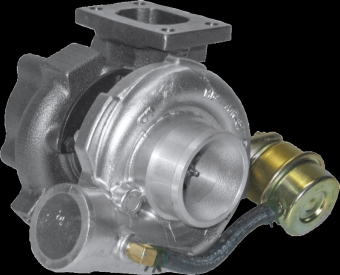

Garrett GT2252 Turbo

Description

Garrett GT2252 Turbocharger

The GT2252 is ideal for small displacement engines making up to 260 hp.  A dimensionally compact unit, this journal bearing turbo is sized for applications with packaging and fitment constraints.  The classic T25 turbine flange is a versatile and simple undivided inlet configuration with internal wastegate.  1 cylinder, 2 cylinder, 3cylinder and small 4 cylinder engines can spool this turbo well with ample airflow capability.  Oil Cooled CHRA only

Compressor Specifications

• Compressor Wheel Exducer: 52mm
• Compressor Wheel Inducer: 40mm
• Compressor Wheel Trim: 60
• Compressor Wheel A/R: 0.51 A/R
• Max Flow Rate: 27 lb/min
• Max Recommended Turbo Shaft Speed: 195000 RPM
• Compressor Housing Connections:
  • Inlet: 2.375″ Hose Coupler
  • Outlet: 2.0″ Hose Coupler

Turbine Specifications

• Turbine Wheel Exducer: 43mm
• Turbine Wheel Inducer: 50mm
• Turbine Wheel Trim: 72
• Housing Size and A/R ratio: GT2252 is available in one (1) turbine housing configuration:
  • 0.67 A/R T25 Single Scroll Inlet, 5-Bolt Outlet w/ Internal Wastegate

Compressor Map

Turbo Features

• Journal Bearing CHRA
• Oil-cooled bearing system
• Internally Wastegated Turbine Housing
• T25 turbine inlet flange
• Sized for applications w/ packaging constraints
