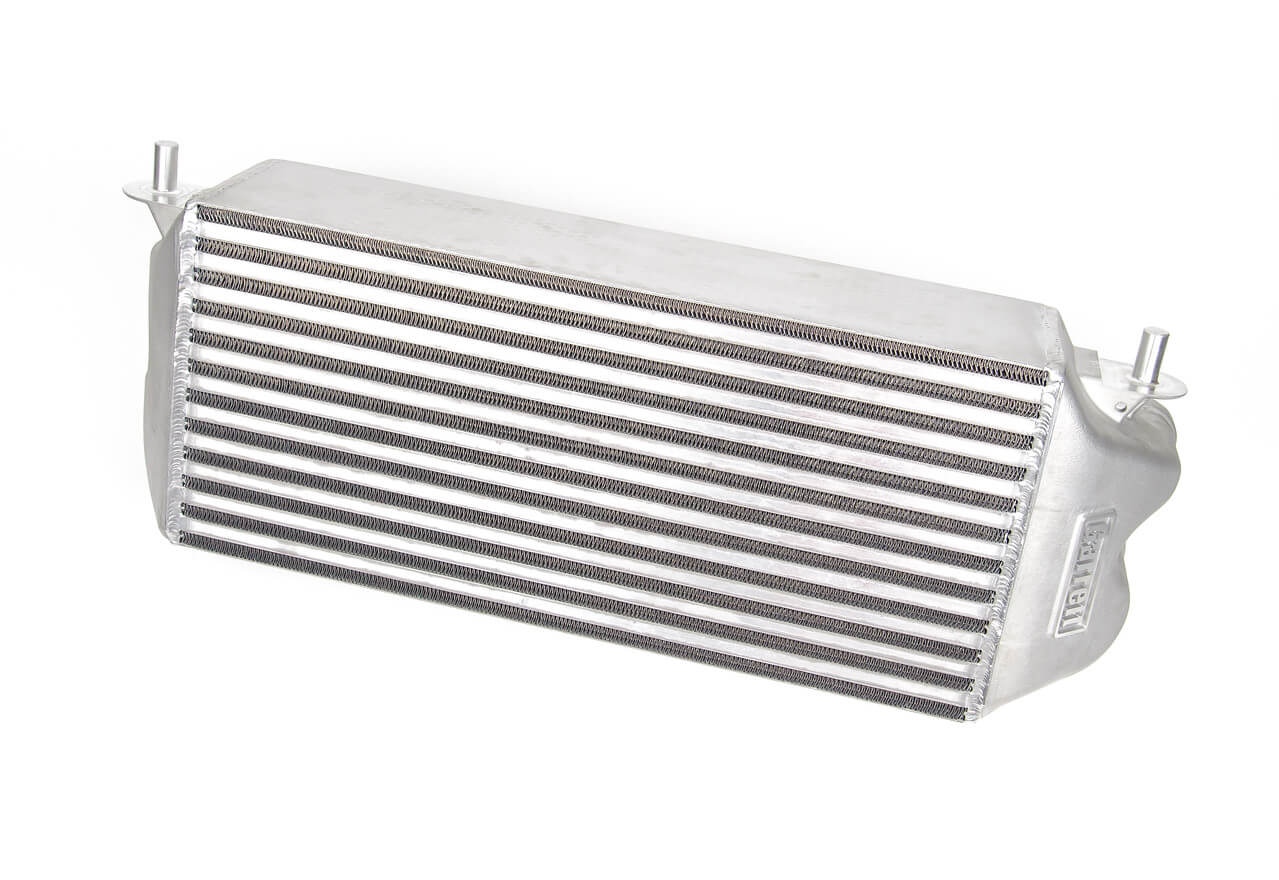

Garrett 2015+ Ford F-150 & Raptor 3.5L & 2.7L EcoBoost Intercooler

The intercooler should be your first upgrade on any turbocharged EcoBoost F-150. This plug-and-play intercooler is CARB-approved, 50-state legal, and easily installed like stock. Boasting an 83% larger core than stock to provide an estimated 25° Fahrenheit reduction in air temperature and a 30% reduction in pressure drop, it can support up to 750 horsepower (with Garrett PowerMax™ Stage 2 turbos), all while reusing the stock bolts, hoses, and clamps. CFD optimized end tanks improve airflow through the core by improving turbulent design features found in the stock unit.

• TIG-welded aluminum construction increases strength and durability for on-road and off-road applications
• The new drain plug feature allows you to drain condensation from the end tanks without drilling a hole.
• Core Size Specs: 21″ x 5.32″ x 9.43″
• Intercooler upgrades are the recommended first modification for turbocharged EcoBoost engines.

• 2017+ Raptor (recommended Pmax Stage 2 turbos)
• 2015+ F150 EcoBoost 3.5L and 2.7L (recommended Pmax Stage 1 turbos)
• Part Number: #870702-6001
• C.A.R.B. Approval: Granted by the California Air Resource Board (C.A.R.B), executive order #D-794 allows the Garrett 870702-6001 direct fit performance charge air cooler to be used on specific emission controlled vehicles.

• Click HERE for Garrett 2015+ F-150 EcoBoost Direct-Fit Charge Air Cooler Installation Guide
