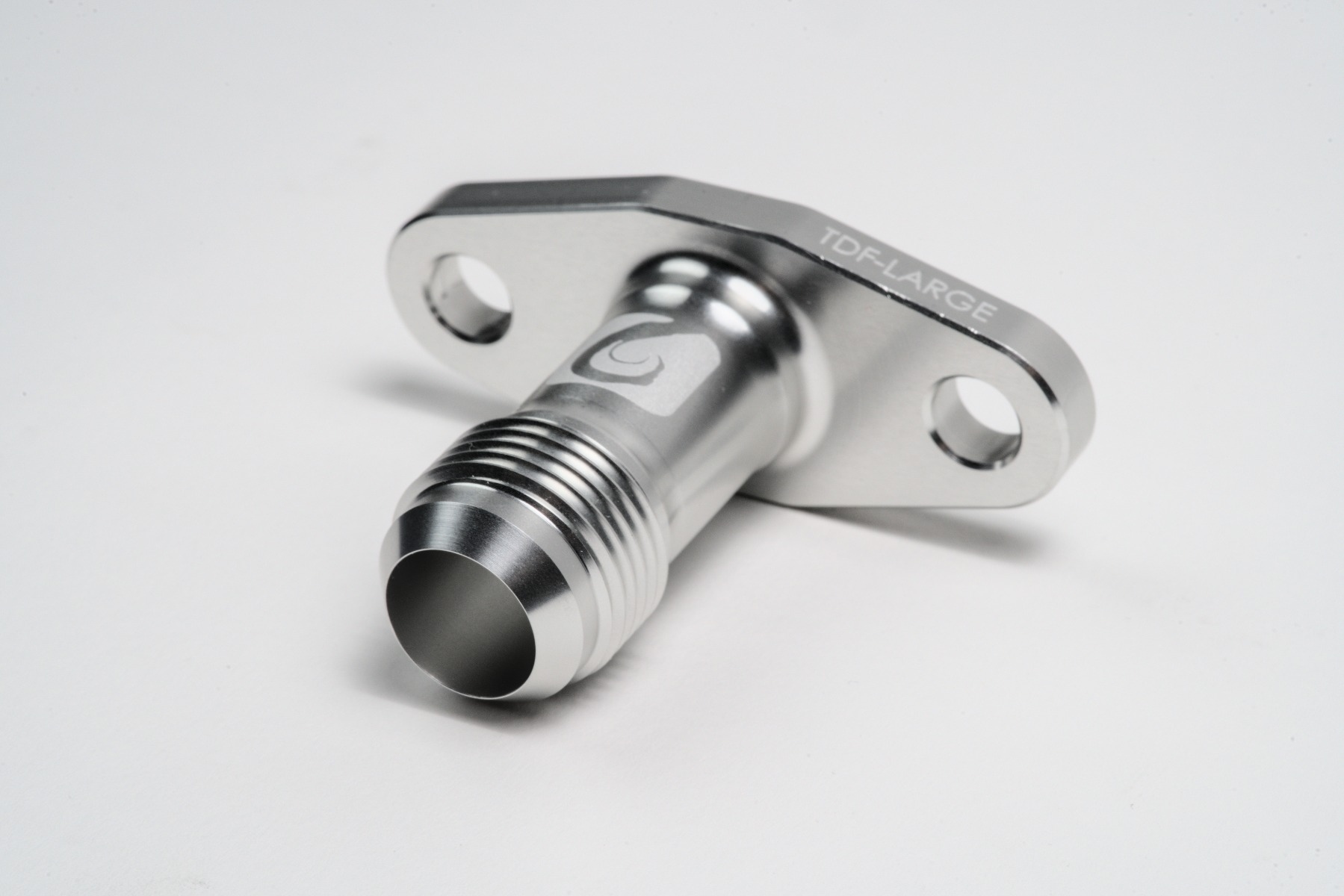

Full Race Large Turbo Drain Flange -10AN

Full Race Large Turbo Drain Flange -10AN

Ready to ship
SKU: 32902
For off-road and race use only

$40

This Full-Race Turbo Drain Flange made out of 6061 Aluminum will help solve all of the shortcomings of traditional drain flanges that use paper gaskets.

Ready to ship
Add to Wishlist
Add to Wishlist
Proven power gains.

Test bench. Real trucks. Real results.

Tuned by diesel addicts.

We drive what we sell.

Installs like OEM. Hits like aftermarket.

100% fit. Maximum output.

Fast shipping.

Ready to ship from US warehouses.

Description

FULL-RACE -10AN BILLET OIL DRAIN FLANGE FOR PRECISION, GARRETT GT40+ TURBOCHARGERS

FULL-RACE -10AN BILLET OIL DRAIN FLANGE FOR PRECISION, GARRETT GT40+ TURBOCHARGERSFULL-RACE -10AN BILLET OIL DRAIN FLANGE FOR PRECISION, GARRETT GT40+ TURBOCHARGERS

TIRED OF LEAKING TURBO OIL DRAINS?

Having trouble getting your Precision or Garrett GT40+ turbocharger drain to seal? We’ve got the solution! The Full-Race -10AN Billet Oil Drain Flange is computer designed and CNC machines from aluminum. This flange features a specially machined o-ring groove to ensure proper sealing, unlike the usual paper gaskets or RTV sealant. This drain flange can also be used with some Borg Warner Airwerks turbochargers by slightly enlarging the mounting holes.

FULL-RACE -10AN BILLET OIL DRAIN FLANGE FOR PRECISION, GARRETT GT40+ TURBOCHARGERSFULL-RACE -10AN BILLET OIL DRAIN FLANGE FOR PRECISION, GARRETT GT40+ TURBOCHARGERS

UNIQUE PERFORMANCE FEATURES

The Full-Race Billet Oil Drain Flange features 2.00 inch bolt spacing which is designed for M8x1.25 screws. The internal passages feature a gradual transition to improve oil flow out of the turbo. Our engineers have also extended the fitting height to make accessing the AN hose end easier for loosening or tightening. This drain flange is designed and machined right here in the USA from billet 6061 aluminum.

TITLE

Text

TITLE

Text

FEATURES

COMPRESSOR SPECIFICATIONS:

  • Compressor Wheel Inducer: 64.39mm
  • Compressor Wheel Exducer: 86.61mm
  • Compressor Housing Connections:Inlet: 4.0″ Hose Coupler (CCS)
  • Outlet: 2.5″ Hose Coupler (CCS)

TURBINE SPECIFICATIONS:

  • Turbine Wheel Inducer: 74.17mm
  • Turbine Wheel Exducer: 66mm

SPECIFICATIONS

  • Product Name: Full-Race -10an Billet Oil Drain Flange For Precision, Garrett GT40+ Turbochargers
  • Part Number: FR-TDF-LARGE-10AN-2.00
  • Material: Aluminum
  • Color: Silver
  • Fitting Specs: -10 AN Fitting, 2.00” Height, 2.00” Bolt Spacing
  • Kit Includes: 1x Drain Flange, 1x O-Ring, 1x O-Ring Lubricant, M8 Socket Cap Screws,

FEATURED IMAGE

FULL-RACE -10AN BILLET OIL DRAIN FLANGE FOR PRECISION, GARRETT GT40+ TURBOCHARGERSFULL-RACE -10AN BILLET OIL DRAIN FLANGE FOR PRECISION, GARRETT GT40+ TURBOCHARGERS

APPLICATIONS

  • Universal fit for Precision and Garrett GT40 or larger turbochargers
