BorgWarner AirWerks S256SX (7670)

Description

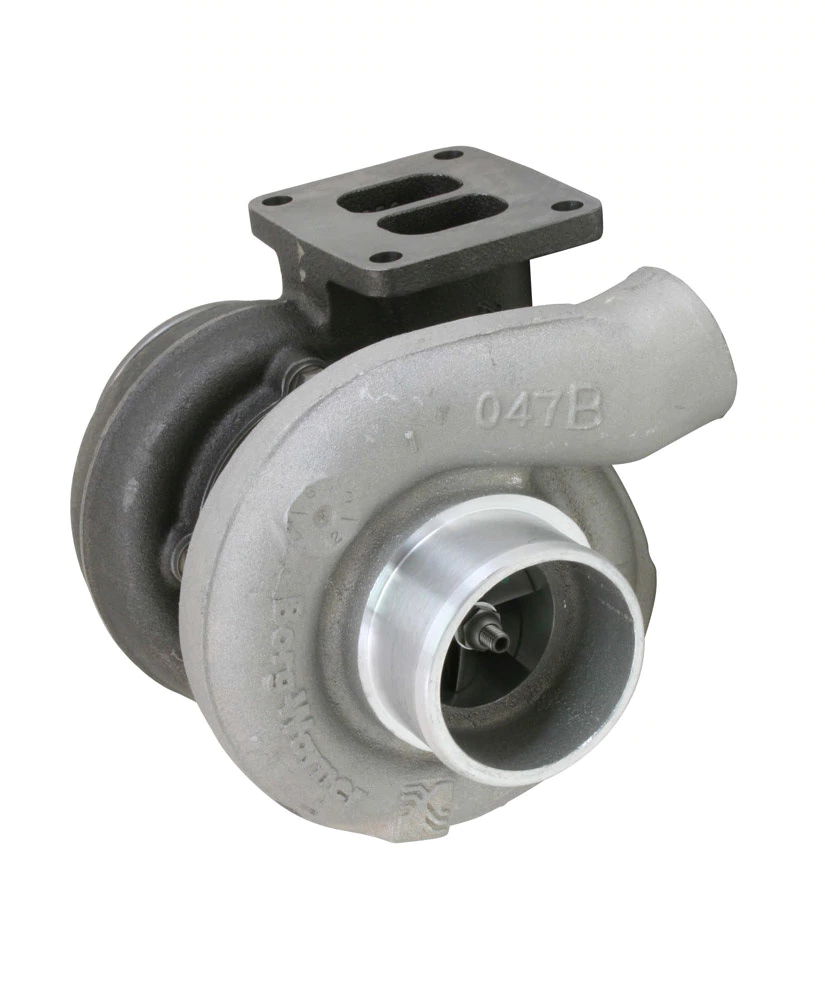

BorgWarner AirWerks S256SX aka S200SX 7670 (177268)

This is one of the best values we’ve ever seen in the turbo industry. Designed as a fast spooling and versatile turbocharger, the S200SX compressor uses a 7-blade Extended-Tip design w/ 55.8mm inducer & 76mm exducer rated at 58 lb/min. 3″ inlet 2″ outlet compressor housing comes standard, 4″ ported shroud inlet 2″ outlet compressor housing optional. The S200SX turbine wheel is a 10 blade turbine with exceptional blade aero, shared with the EFR family. Borg Warner chose the 1.22 A/R Twinscroll T4 footprint to make it a bolt-on for any divided T4 turbo manifold. Ideal for use in quick spooling 380-500+ whp applications.

Full-Race recommends porting the turbine housing inlets to match T4 size openings. Comes standard with a 1.22 A/R Twin Scroll T4 turbine housing (recommended). 1.27, 1.15, 1.09, 1.00 and .83 A/R Twin Scroll T4 housings are also available.  The 1.22 A/R is recommended for all twin scroll applications. Journal Bearing and Oil Cooled only (watercooling and BB CHRA not applicable).

Full-Race Recommends machining the Borg Warner/Airwerks turbocharger outlet and welding on a 3″ Vband flange in the Garrett 40R location. This allows the BW/Airwerks turbo to bolt up to ANY aftermarket Twinscroll T4 that would normally fit a T04Z, GT40R, T66, etc.

Turbine Specifications

Turbine Type: Inconel S200SX Turbine Wheel
Turbine Wheel OD: 70mm
Housing Material: D5S sandcast
Housing Size and A/R ratio: S200SXE 7670 is available in six (6) different turbine housing configurations:

• 0.83 A/R Divided T4 Twin Scroll
• 1.00 A/R Divided T4 Twin Scroll
• 1.09 A/R Divided T4 Twin Scroll
• 1.15 A/R Divided T4 Twin Scroll
• 1.22 A/R Divided T4 Twin Scroll *Included*
• 1.27 A/R Divided T4 Twin Scroll

**Can Be Hand Ported to Divided T4 – See Install Tab**
