94mm Precision PT94

Description

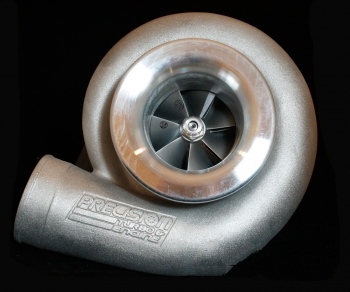

94mm Precision PTE Billet PT94 CEA Turbo

The 94mm CEA is their smaller size inducer 141mm compressor, rated for 1750hp depending on the application.  Journal Bearing Only.  Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging.

Compressor Specifications

• Compressor Wheel Exducer: 141.22mm
• Compressor Wheel Inducer: 93.98mm
• Compressor Housing Connections:
  • Inlet: 7″ Hose Coupler (CCP)
  • Outlet: 4″ Hose Coupler (CCP)

Turbine Specifications

• Turbine Wheel Exducer: 111.76mm
• Turbine Wheel Inducer: 129.54mm
• Housing Size and A/R ratio: PT94 CEA is available in three (3) different turbine housing configurations:
  • T5 Open Inlet, V-Band Outlet 1.00 A/R
  • T5 Open Inlet, V-Band Outlet 1.32 A/R
  • T5 Open Inlet, V-Band Outlet 1.50 A/R
